- 产品名称：YQW YZW YCW橡套软电缆
- 添加时间：2018-08-21 10:11:08
- 推荐度：

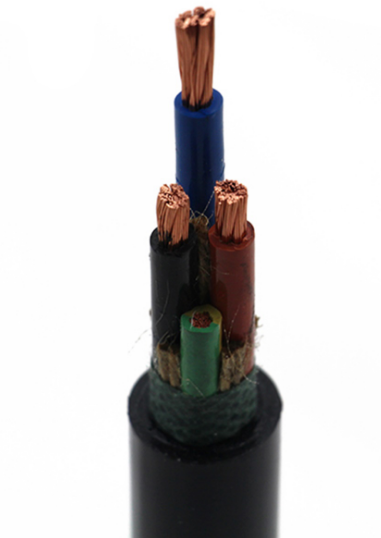

YQW YZW YCW橡套软电缆
一、YQW YZW YCW橡套软电缆产品型号
型号 | 名称 | 主要用途 |
YQ、YQW | 轻型橡套软电缆 | 用于轻型移动电器和工具 |
YZ、YZW | 中型橡套软电缆 | 用于各种移动电器和工具 |
YC、YCW | 重型橡套软电缆 | 用于各种移动电器设备，能承受较大的机械外力作用 |
二、YQW YZW YCW橡套软电缆产品执行标准
产品执行GB/T5013-2008《额定电压450/750V及以下橡皮绝缘电缆》
三、产品应用范围
YQW YZW YCW橡套软电缆是由多股的细铜丝为导体，外包橡胶绝缘和橡胶护套的一种柔软可移动的电缆品种。 一般来讲，包括通用橡套软电缆，电焊机电缆，潜水电机电缆，无线电装置电缆和摄影光源电缆等品种。
橡套电缆广泛使用于各种电器设备，例如日用电器、电动机械、电工装置和器具的移动式电源线，同时可在室内或户外环境条件下使用。根据电缆所受的机械外力,在产品结构上分为轻型、中型和重型三类，在截面上也有适当的衔接，一般轻型橡套电缆使用于日用电器，小型电动设备，要求柔软、轻巧、弯曲性能好；中型橡套电缆除工业用外，广泛用于农业电气化中，重型电缆用于如港口机械，探照灯，农业大型水力排灌站等场合。这类产品具有良好的通用性，系列规格完整，性能良好和稳定。
四、YQW YZW YCW橡套软电缆产品技术参数表
300/300V YQ、YQW轻型橡套软电缆结构参数
标称截面 mm2 | 导电线芯 根数/直径 mm | 绝缘标称 厚度 mm | 护套标称 厚度 mm | 平均外径 mm | 电缆重量 kg/km | 20℃时导体电阻不大于Ω/km | |||
下限 | 上限 | YQ | YQW | 铜芯 | 镀锡铜芯 | ||||
2×0.3 | 16/0.15 | 0.5 | 0.7 | 4.6 | 6.6 | 26.0 | 26.8 | 69.2 | 71.2 |
2×0.5 | 28/0.15 | 0.5 | 0.7 | 5.0 | 7.2 | 34.2 | 35.0 | 39.0 | 40.1 |
3×0.3 | 16/0.15 | 0.5 | 0.7 | 4.8 | 7.0 | 33.5 | 34.3 | 69.2 | 71.2 |
3×0.5 | 28/0.15 | 0.5 | 0.7 | 5.2 | 7.6 | 45.0 | 46.8 | 39.0 | 40.1 |
300/500V YZ、YZW中型橡套软电缆结构参数
标称截面 mm2 | 导电线芯 | 绝缘 标称 厚度 mm | 护套 标称 厚度 mm | 平均外径 mm | 20℃时导体电阻不大于Ω/km | 电缆重量 kg/km | |||
根数/ 直径 mm | 下限 | 上限 | 铜芯 | 镀锡铜芯 | YZ | YZW | |||
2×0.75 | 24/0.20 | 0.6 | 0.8 | 8.2 | 6.0 | 26.0 | 26.7 | 59.1 | 60.9 |
2×1 | 32/0.20 | 0.6 | 0.9 | 8.8 | 6.6 | 19.5 | 20.0 | 70.8 | 72.9 |
2×1.5 | 30/0.25 | 0.8 | 1.0 | 10.5 | 8.0 | 13.3 | 13.7 | 103.3 | 106.5 |
2×2.5 | 49/0.25 | 0.9 | 1.1 | 12.5 | 9.5 | 7.98 | 8.21 | 152.0 | 156.4 |
2×4 | 56/0.30 | 1.0 | 1.2 | 14.0 | 11.0 | 4.95 | 5.09 | 217.3 | 223.2 |
2×6 | 84/0.30 | 1.0 | 1.3 | 17.0 | 12.5 | 3.30 | 3.39 | 308.1 | 316.2 |
3×0.75 | 24/0.20 | 0.6 | 0.9 | 8.8 | 6.5 | 26.0 | 26.7 | 74.0 | 75.9 |
3×1 | 32/0.20 | 0.6 | 0.9 | 9.2 | 7.0 | 19.5 | 20.0 | 85.8 | 87.8 |
3×1.5 | 30/0.25 | 0.8 | 1.0 | 11.0 | 8.6 | 13.3 | 13.7 | 129.7 | 132.7 |
3×2.5 | 49/0.25 | 0.9 | 1.1 | 13.0 | 10.0 | 7.98 | 8.21 | 190.3 | 194.5 |
3×4 | 56/0.30 | 1.0 | 1.2 | 14.5 | 11.5 | 4.95 | 5.09 | 273.8 | 279.4 |
3×6 | 84/0.30 | 1.0 | 1.3 | 18.0 | 13.0 | 3.30 | 3.39 | 389.2 | 396.8 |
4×0.75 | 24/0.20 | 0.6 | 0.9 | 9.6 | 7.1 | 26.0 | 26.7 | 89.7 | 91.7 |
4×1 | 32/0.20 | 0.6 | 0.9 | 10.0 | 7.6 | 19.5 | 20.0 | 104 | 106.2 |
4×1.5 | 30/0.25 | 0.8 | 1.1 | 12.5 | 9.6 | 13.3 | 13.7 | 162.2 | 1966 |
4×2.5 | 49/0.25 | 0.9 | 1.2 | 14.0 | 11.0 | 7.98 | 8.21 | 295.6 | 300.4 |
4×4 | 56/0.30 | 1.0 | 1.3 | 16.5 | 13.0 | 4.95 | 5.09 | 419 | 425.3 |
4×6 | 84/0.30 | 1.0 | 1.4 | 20.0 | 14.5 | 3.30 | 3.39 | 491.5 | 499.9 |
3×1.5+1×1.0 | 30/0.25+32/0.20 | 0.8/0.6 | 1.1 | 12.0 | 9.4 | 13.3 | 13.7 | 149.3 | 152.5 |
3×2.5+1×1.5 | 49/0.25+30/0.25 | 0.9/0.8 | 1.2 | 14.0 | 11.0 | 7.98 | 8.21 | 218.3 | 222.6 |
3×4+1×2.5 | 56/0.30+49/0.25 | 1.0/0.9 | 1.3 | 16.0 | 13.0 | 4.95 | 5.09 | 318.4 | 324.4 |
3×6+1×4 | 84/0.30+49/0.25 | 1.0/1.0 | 1.4 | 19.5 | 14.5 | 3.30 | 3.39 | 458.6 | 466.6 |
5×0.75 | 24/0.20 | 0.6 | 1.0 | 11.0 | 8.0 | 26.0 | 26.7 | 111.6 | 114 |
5×1 | 30/0.20 | 0.6 | 1.0 | 11.5 | 8.5 | 19.5 | 20.0 | 130.1 | 132.7 |
5×1.5 | 30/0.25 | 0.8 | 1.1 | 13.5 | 10.5 | 13.3 | 13.7 | 196.8 | 200.5 |
5×2.5 | 49/0.25 | 0.9 | 1.3 | 15.5 | 12.5 | 7.98 | 8.21 | 296.5 | 301.9 |
5×4 | 56/0.30 | 1.0 | 1.4 | 10.0 | 14.5 | 4.95 | 5.09 | 429.1 | 436.2 |
5×6 | 84/0.30 | 1.0 | 1.6 | 22.5 | 16.5 | 3.30 | 3.39 | 617.9 | 627.9 |
450/750V YC、YCW重型橡套软电缆结构参数
标称截面 mm2 | 导电线芯 | 绝缘 标称 厚度 mm | 护套 标称 厚度 mm | 平均外径 mm | 20℃时导体电 阻不大于Ω/km | 电缆重量 kg/km | |||
根数/直径 mm | 下限 | 上限 | 铜芯 | 镀锡铜芯 | YC | YCW | |||
1×1.5 | 30/0.25 | 0.8 | 1.4 | 5.8 | 7.2 | 13.3 | 13.7 | 52.1 | 54 |
1×2.5 | 49/0.25 | 0.9 | 1.4 | 6.4 | 8.0 | 7.98 | 8.21 | 69.5 | 71 |
1×4 | 56/0.30 | 1.0 | 1.5 | 7.4 | 9.0 | 4.95 | 5.09 | 96.6 | 99 |
1×6 | 84/0.30 | 1.0 | 1.6 | 8.0 | 11.0 | 3.30 | 3.39 | 132.8 | 135.7 |
1×10 | 84/0.40 | 1.2 | 1.8 | 9.8 | 12.5 | 1.91 | 1.95 | 211.9 | 216 |
1×16 | 126/0.40 | 1.2 | 1.9 | 11.0 | 14.5 | 1.21 | 1.24 | 283 | 288 |
1×25 | 196/0.40 | 1.4 | 2.0 | 12.5 | 16.5 | 0.780 | 0.795 | 410 | 416 |
1×35 | 276/0.40 | 1.4 | 2.2 | 14.0 | 18.5 | 0.554 | 0.565 | 545 | 553 |
1×50 | 396/0.40 | 1.6 | 2.4 | 16.5 | 21.0 | 0.386 | 0.393 | 734 | 764 |
1×70 | 360/0.50 | 1.6 | 2.6 | 18.5 | 23.5 | 0.272 | 0.227 | 1010 | 1023 |
1×95 | 475/0.50 | 1.8 | 2.8 | 21.0 | 26 | 0.206 | 0.210 | 1291 | 1306 |
1×120 | 608/0.50 | 1.8 | 3.0 | 23.5 | 28.5 | 0.161 | 0.164 | 1558 | 1605 |
1×150 | 756/0.50 | 2.0 | 3.2 | 26.0 | 31.5 | 0.129 | 0.132 | 1937 | 1958 |
1×185 | 125/0.50 | 2.2 | 3.4 | 27.0 | 34.5 | 0.106 | 0.108 | 2330 | 2353 |
1×240 | 1221/0.50 | 2.4 | 3.5 | 30.5 | 38.0 | 0.0801 | 0.0817 | 2989 | 3017 |
1×300 | 1525/0.50 | 2.6 | 3.6 | 33.5 | 41.5 | 0.0641 | 0.0654 | 3608 | 3640 |
1×400 | 2013/0.50 | 2.8 | 3.8 | 37.5 | 46.5 | 0.0486 | 0.0495 | 4725 | 4762 |
2×1.5 | 30/0.25 | 0.8 | 1.5 | 9.0 | 11.5 | 13.3 | 13.7 | 122 | 126.4 |
2×2.5 | 49/0.25 | 0.9 | 1.7 | 10.5 | 13.5 | 7.98 | 8.21 | 179 | 185 |
2×4 | 56/0.30 | 1.0 | 1.8 | 12.0 | 15.0 | 4.95 | 5.09 | 249 | 257 |
2×6 | 84/0.30 | 1.0 | 2.0 | 13.5 | 18.5 | 3.30 | 3.39 | 352 | 362 |
2×10 | 84/0.40 | 1.2 | 3.1 | 18.5 | 24.0 | 1.91 | 1.95 | 636 | 656 |
2×16 | 126/0.40 | 1.2 | 3.3 | 21.0 | 27.5 | 1.21 | 1.24 | 883 | 909 |
2×25 | 196/0.40 | 1.4 | 3.6 | 25.0 | 31.5 | 0.780 | 0.795 | 1276 | 1310 |
2×35 | 276/0.40 | 1.4 | 3.9 | 27.5 | 35.5 | 0.554 | 0.565 | 1695 | 1741 |
2×50 | 396/0.40 | 1.6 | 4.3 | 32.0 | 41.0 | 0.386 | 0.393 | 2331 | 2392 |
2×70 | 360/0.50 | 1.6 | 4.6 | 36.0 | 46.0 | 0.272 | 0.227 | 3078 | 3155 |
2×95 | 475/0.50 | 1.8 | 5.0 | 40.5 | 50.5 | 0.206 | 0.210 | 3893 | 3985 |
3×1.5 | 30/0.25 | 0.8 | 1.6 | 9.6 | 12.5 | 13.3 | 13.7 | 150 | 153 |
3×2.5 | 49/0.25 | 0.9 | 1.8 | 11.5 | 14.5 | 7.98 | 8.21 | 220 | 226.2 |
3×4 | 56/0.30 | 1.0 | 1.9 | 13.0 | 16.0 | 4.95 | 5.09 | 308 | 316.4 |
3×6 | 84/0.30 | 1.0 | 2.1 | 14.5 | 20.0 | 3.30 | 3.39 | 436 | 447 |
3×10 | 84/0.40 | 1.2 | 3.3 | 20.0 | 25.5 | 1.91 | 1.95 | 790 | 811 |
3×16 | 126/0.40 | 1.2 | 3.5 | 22.5 | 29.5 | 1.21 | 1.24 | 1051 | 1077 |
3×25 | 196/0.40 | 1.4 | 3.8 | 26.5 | 34.0 | 0.780 | 0.795 | 1527 | 1563 |
3×35 | 276/0.40 | 1.4 | 4.1 | 29.5 | 38.0 | 0.554 | 0.565 | 2029 | 2075 |
3×50 | 396/0.40 | 1.6 | 4.5 | 34.5 | 43.5 | 0.386 | 0.393 | 2805 | 2866 |
3×70 | 360/0.50 | 1.6 | 4.8 | 39.0 | 49.5 | 0.272 | 0.227 | 3573 | 3640 |
3×95 | 475/0.50 | 1.8 | 5.3 | 44.0 | 54.0 | 0.206 | 0.210 | 4734 | 4829 |
3×120 | 608/0.50 | 1.8 | 5.6 | 48.0 | 59.0 | 0.161 | 0.164 | 5784 | 5893 |
3×150 | 756/0.50 | 2.0 | 6.0 | 53.0 | 66.5 | 0.129 | 0.132 | 7126 | 7256 |
4×1.5 | 30/0.25 | 0.8 | 1.7 | 10.5 | 13.5 | 13.3 | 13.7 | 190 | 194.5 |
4×2.5 | 49/0.25 | 0.9 | 1.9 | 12.5 | 15.5 | 7.98 | 8.21 | 277 | 284 |
4×4 | 56/0.30 | 1.0 | 2.0 | 14.5 | 18.0 | 4.95 | 5.09 | 414 | 424.8 |
4×6 | 84/0.30 | 1.0 | 2.3 | 16.5 | 22.0 | 3.30 | 3.39 | 559 | 571 |
4×10 | 84/0.40 | 1.2 | 3.4 | 21.5 | 28.0 | 1.91 | 1.95 | 987 | 1609 |
4×16 | 126/0.40 | 1.2 | 3.6 | 24.5 | 32.0 | 1.21 | 1.24 | 1418 | 1346 |
4×25 | 196/0.40 | 1.4 | 4.1 | 29.5 | 37.5 | 0.780 | 0.795 | 1951 | 1991 |
4×35 | 276/0.40 | 1.4 | 4.4 | 33.0 | 42.0 | 0.554 | 0.565 | 2589 | 2640 |
4×50 | 396/0.40 | 1.6 | 4.8 | 38.0 | 48.5 | 0.386 | 0.393 | 3578 | 3646 |
4×70 | 360/0.50 | 1.6 | 5.2 | 43.0 | 55.0 | 0.272 | 0.277 | 4779 | 4863 |
4×95 | 475/0.50 | 1.8 | 5.9 | 49.0 | 60.5 | 0.206 | 0.210 | 6130 | 6235 |
4×120 | 608/0.50 | 1.8 | 6.0 | 53.0 | 65.5 | 0.161 | 0.164 | 7436 | 7556 |
4×150 | 756/0.50 | 2.0 | 6.5 | 59.0 | 74.0 | 0.129 | 0.132 | 9172 | 9322 |
3×2.5+1×1.5 | 49/0.25+30/0.25 | 0.9/0.8 | 2.0 | 12.5 | 15.5 | 7.98 | 8.21 | 261 | 267.7 |
3×4+1×2.5 | 56/0.30+49/0.25 | 1.0/0.9 | 2.0 | 14.5 | 17.5 | 4.95 | 5.09 | 363 | 371 |
3×6+1×4 | 84/0.30+56/0.30 | 1.0/1.0 | 2.2 | 16.0 | 21.0 | 3.30 | 3.39 | 511 | 522 |
3×10+1×6 | 84/0.40+84/0.30 | 1.2/1.0 | 3.0 | 20.5 | 26.5 | 1.91 | 1.95 | 858 | 878 |
3×16+1×6 | 126/0.40+84/0.30 | 1.2/1.0 | 3.5 | 23.0 | 30.5 | 1.21 | 1.24 | 1143 | 1168 |
3×25+1×10 | 196/0.40+84/0.40 | 1.4/1.2 | 4.0 | 26.0 | 35.5 | 0.780 | 0.795 | 1708 | 1744 |
3×35+1×10 | 276/0.40+84/0.40 | 1.4/1.2 | 4.0 | 30.0 | 38.5 | 0.554 | 0.565 | 2159 | 2202 |
3×50+1×16 | 396/0.40+126/0.40 | 1.6/1.2 | 5.0 | 36.0 | 46.0 | 0.386 | 0.393 | 3085 | 3147 |
3×70+1×25 | 360/0.50+196/0.40 | 1.6/1.4 | 5.0 | 40.0 | 51.0 | 0.272 | 0.277 | 4064 | 4138 |
3×95+1×35 | 475/0.50+276/0.40 | 1.8/1.4 | 5.0 | 44.0 | 55.0 | 0.206 | 1.210 | 5095 | 5179 |
3×120+1×35 | 608/0.50+276/0.40 | 1.8/1.4 | 5.0 | 46.5 | 59.0 | 0.161 | 1.164 | 6019 | 6113 |
3×150+1×50 | 756/0.50+396/0.40 | 2.0/1.6 | 5.0 | 52.0 | 66.0 | 0.129 | 0.132 | 7445 | 7559 |
5×1.5 | 30/0.25 | 0.8 | 1.8 | 11.5 | 15.0 | 13.3 | 13.7 | 231 | 237 |
5×2.5 | 49/0.25 | 0.9 | 2.0 | 13.5 | 17.0 | 7.98 | 8.21 | 337 | 345 |
5×4 | 56/0.30 | 1.0 | 2.2 | 16.0 | 19.5 | 4.95 | 5.09 | 484 | 494 |
5×6 | 84/0.30 | 1.0 | 2.5 | 18.0 | 24.5 | 3.30 | 3.39 | 694 | 708 |
5×10 | 84/0.40 | 1.2 | 3.6 | 24.0 | 31.0 | 1.91 | 1.95 | 1210 | 1236 |
5×16 | 126/0.40 | 1.2 | 3.9 | 27.0 | 35.5 | 1.21 | 1.24 | 1632 | 1664 |
5×25 | 196/0.40 | 1.4 | 4.4 | 32.5 | 41.5 | 0.780 | 0.795 | 2408 | 2454 |
